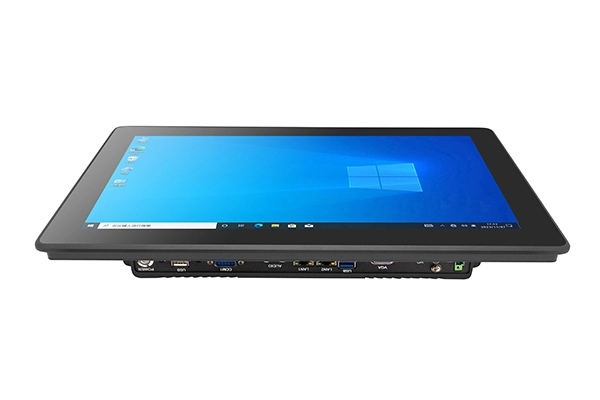

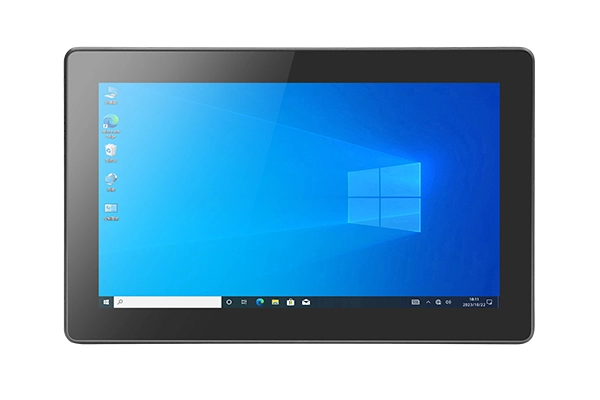

15.6" Intel® Processor Core/N-series Alder Lake 12th Gen i3/i5/i7 & N97/N100
Industrial display screen, multi point capacitive touch screen
Watchdog 0-255 seconds/grading implemented through system software
OS Windows 10、 Ubuntu
15.6" Intel® Processor Core™ Alder Lake 12th Gen i3/i5/i7 & N-series N97
Industrial display screen, multi point capacitive touch screen
2*SO-DIMM DDR4 (up to 64GB supported, max 16GB for N97)
2*USB 3.0+2*USB 2.0
1*RS232 Optional additional 3*RS232/485/422 on TOP(Max 2*RS485 or 1*RS485+1*RS422)

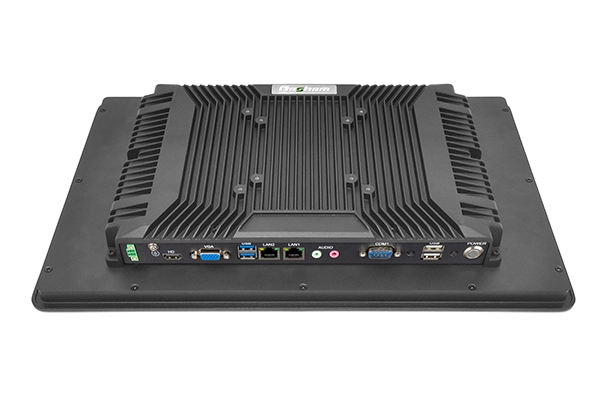

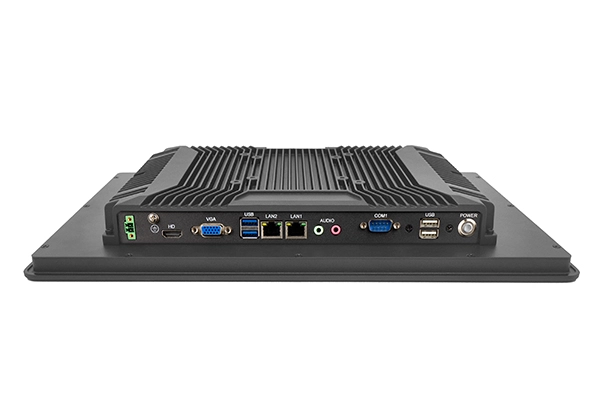

1*HD/1*VGA/2*RJ45/2*Audio

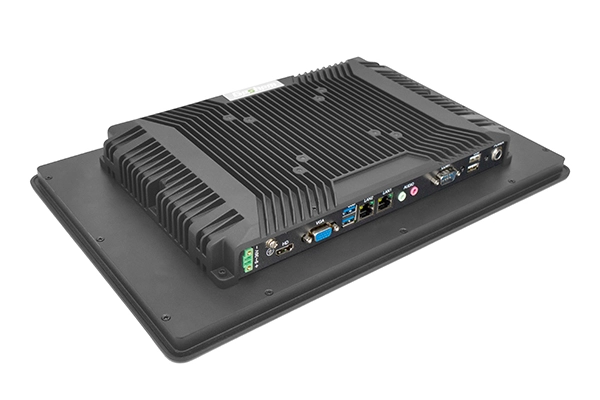

Fanless design
| System Hardware | |||
| CPU | Intel® Processor Core™ 12th Gen i3/i5/i7 | Memory | DDR4 (optional 8/16/32/64GB,max 16GB for N97) |
| Watchdog | 0-255 seconds/grading implemented through system software | Storage | M.2 2280 NVME SSD (optional 128/256/512GB/1T/2T/4T) |
| Display | |||
| LCD Type | 15.6″ | Luminance | 300 cd/m2 |
| Max. Resolution | 1920*1080 | Contrast Ratio | 1000: 1 |
| Touchscreen Type | 15.6" Multi point capacitive touch screen | ||
| OS | |||
| OS | Windows 10/11、 Ubuntu | ||
| I/O Ports | |||
| USB | 2*USB3.2, 2*USB2.0(optional USB3.0) | Audio | 1*Line out, 1*MIC in |
| Serial port | 1*RS232 Optional additional 3*RS232/485/422 on TOP (Max 2*RS485 or 1*RS485+1*RS422) | Video | 1*HDMI，1*VGA |
| LAN | 2*1Gbe RJ45(Realtek） | Expansion Slot | Optional dual band WIFI/BT, optional 4G/5G communication |
| GPIO | Customizable 4in+4out+VCC+GND | SIM Card | Optional with 4G/5G |
| Power | |||
| Power Input | Standard Phoenix terminal(Optional Auto power on & 9-36V wide voltage input) | ||
| Environment | |||
| Vibration Protection | 5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration | Operating Temp. | -10℃～60℃, Surface air flow |
| Shock Protection | 10g acceleration, 11ms cycle | Storage Temp. | -20℃～70℃ |
| Reliability | MTBF ≥ 30000h; MTTR ≤ 0.5h | Humidity | 95% @ 40℃, no condensation |
| IP Rating | Front panel IP65 | ||
| Mechanical | |||

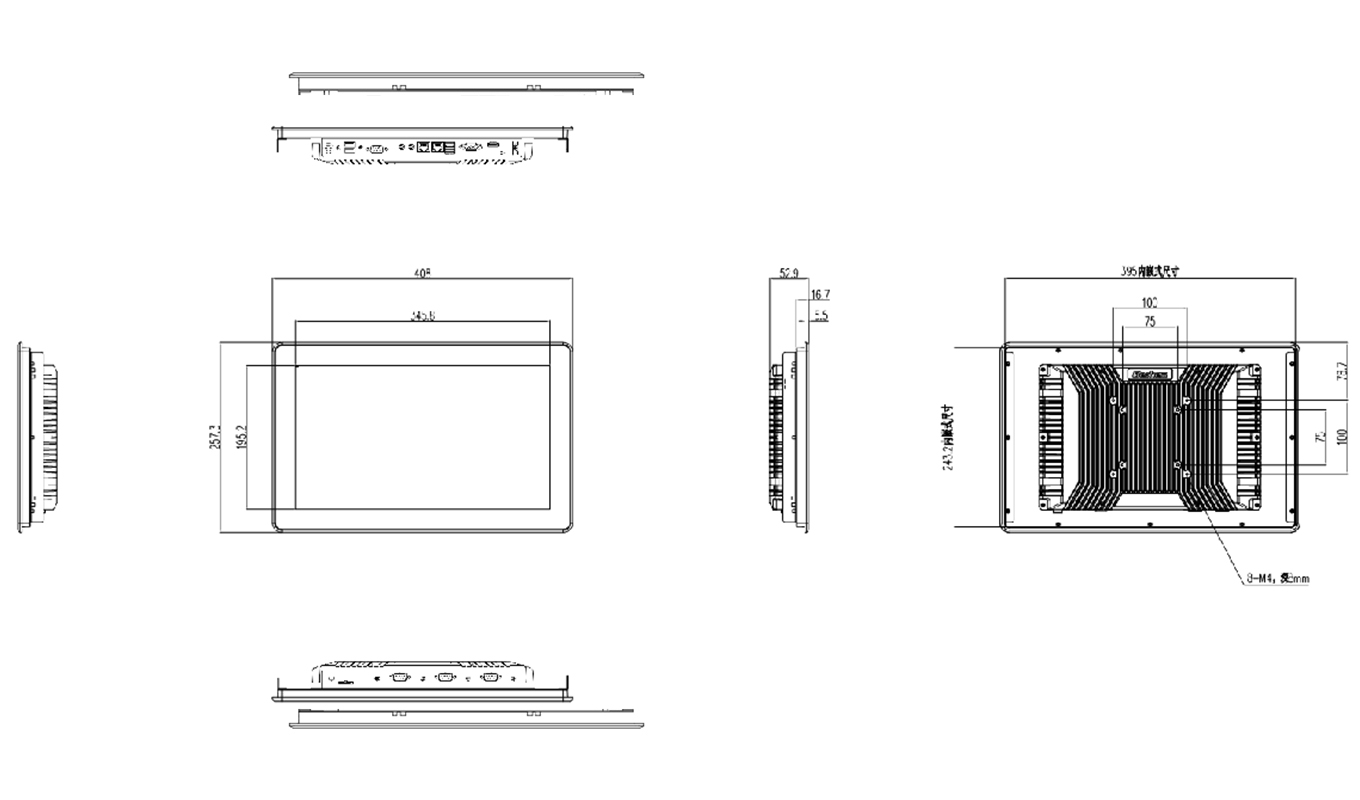

| Dimension (WxHxD) | 408mm*257.3mm*52.9mm | Material | All metal fanless design |
| Weight | 4.2kg/4.6kg(N.W./G.W.) | Mounting | VESA Installation: 75*75mm/100*100mm Embedded Installation: 394mm*244mm |
| Color | Black | ||
| Ordering Information: | |||
| Serial Number | Model | CPU | Notes |
| 1 | TY156-GS123B | i3-1215U | The CPU may change based on the market Please consult the sales for the specific CPU before placing the order |
| 2 | TY156-GS125B | i5-1235U | |
| 3 | TY156-GS127B | i7-1255U | |
| 4 | TY156-GSN97B | N97 | |
